AC Power cords
An assortment of single-phase, AC power cables for North American and International markets.
OVERVIEW
These single-phase AC power cables feature conductors ranging in size from 18-12 AWG (North American Cords) and .75-1.5mm (European Cords) and offer a variety of connector options rated from 10-20Amps at 120-250V AC.
Hospital Grade power cables are available which feature solid contacts, soldered connections, larger plug heads, a greater pull force, and show a green dot on the plug head to denote the hospital grade rating for ease of identification.
Shielded power cables are available upon special request. Customizations like custom lengths, different cord types or plug configurations to these power cords are available.
2 Conductor Power Cords
| PART NUMBER | AWG | CORD TYPE | LENGTH | END 1 | END 2 | CURRENT RATING (125V AC) | DISTRIBUTOR STOCK |
|
|---|---|---|---|---|---|---|---|---|
 | 18320-90-01 | 18 | SPT-1 | 9' 0" | 1-15P | Blunt-Cut Wires | 10 A | BUY NOW |
3 Conductor Power Cords
| PART NUMBER | AWG | CORD TYPE | LENGTH | END 1 | END 2 | CURRENT RATING (125V AC) | DISTRIBUTOR STOCK | |
|---|---|---|---|---|---|---|---|---|
 | 24101-250-01 | 14 | SJT | 25'0" | C13 | Blunt-Cut Wires | 15 A | BUY NOW |
 | 24130-67-01 | 14 | SJT | 6' 7" | 5-15P | Blunt-Cut Wires | 15 A | BUY NOW |

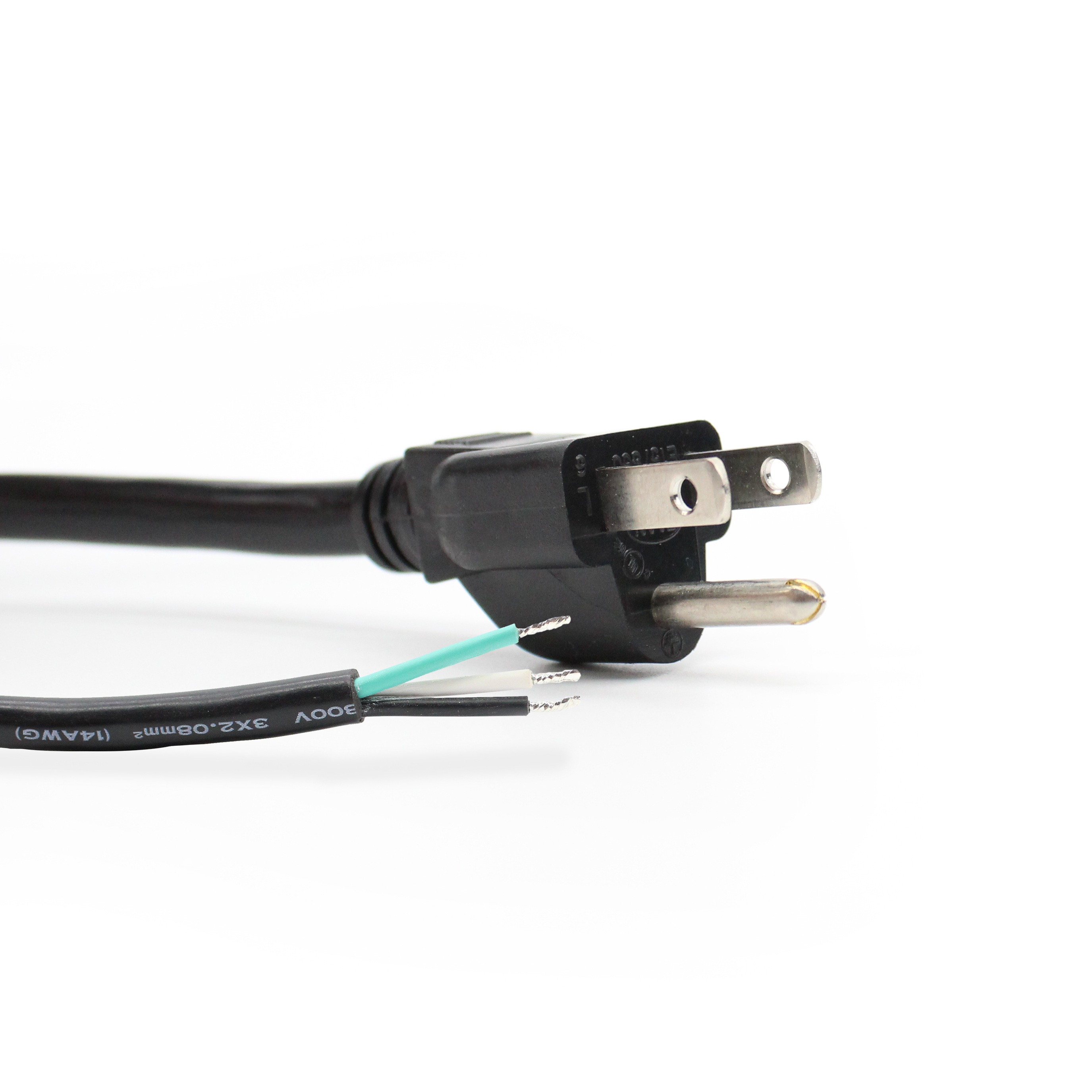

| 24130-910-01 | 14 | SJT | 9' 10" | 5-15P | Blunt-Cut Wires | 15 A | BUY NOW |
| 26131-910-01 | 16 | SJT | 6' 0" | 5-15P | Blunt-Cut Wires | 13 A | BUY NOW |
| 26130-67-01 | 16 | SJT | 6'7" | 5-15P | Blunt-Cut Wires | 13 A | BUY NOW |
| 26130-80-01 | 16 | SJT | 8'0" | 5-15P | Blunt-Cut Wires | 13 A | BUY NOW |
| 26130-910-01 | 16 | SJT | 9'10" | 5-15P | Blunt-Cut Wires | 13 A | BUY NOW |
 | 28180-910-01 | 18 | SJT | 9'10" | 6-15P | Blunt-Cut Wires | 13 A | BUY NOW |
| 28130-67-01 | 18 | SJT | 6'7" | 5-15P | Blunt-Cut Wires | 10 A | BUY NOW |

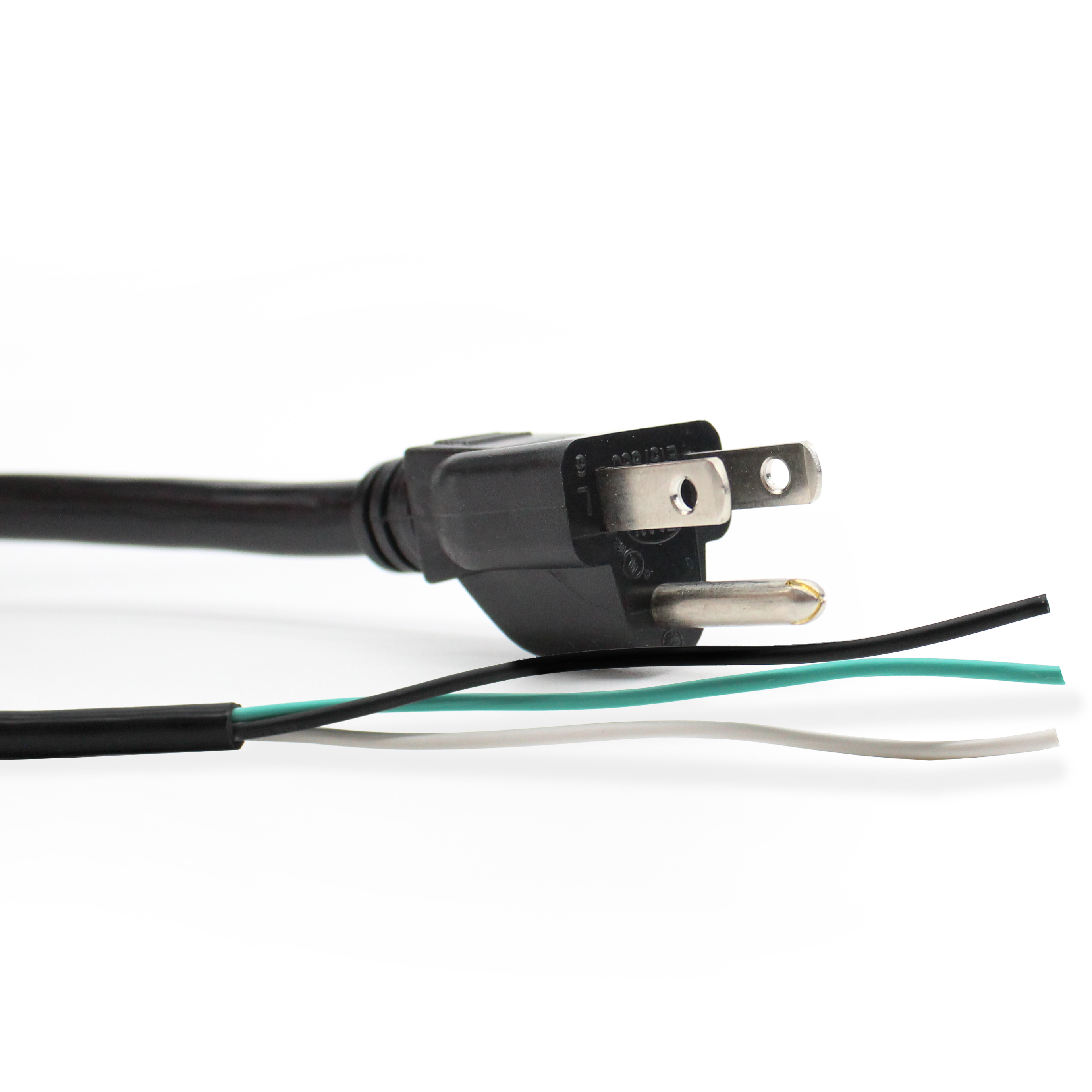

| 28130-80-01 | 18 | SJT | 8'0" | 5-15P | Blunt-Cut Wires | 10 A | BUY NOW |
| 28130-910-01 | 18 | SJT | 9'10" | 5-15P | Blunt-Cut Wires | 10 A | BUY NOW |
| 28230-67-01 | 18 | SVT | 6'7" | 5-15P | Blunt-Cut Wires | 10 A | BUY NOW |

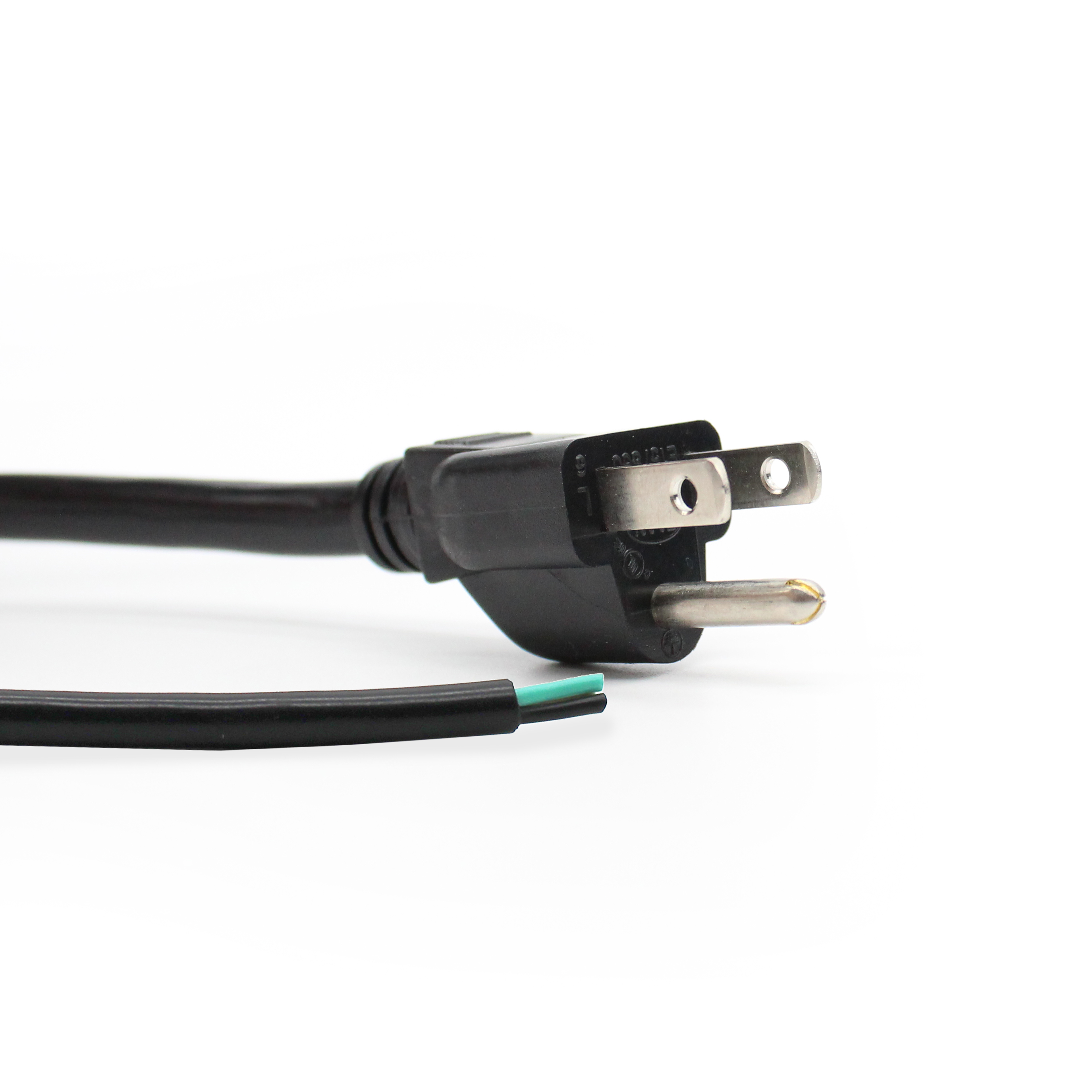

| 28230-910-01 | 18 | SVT | 9'10" | 5-15P | Blunt-Cut Wires | 10 A | BUY NOW |
 | 24131-67-01 | 14 | SJT | 6'7" | 5-15P | C13 | 15 A | BUY NOW |
| 24131-910-01 | 14 | SJT | 9'10" | 5-15P | C13 | 15 A | BUY NOW |
| 26131-67-01 | 16 | SJT | 6'7" | 5-15P | C13 | 13 A | BUY NOW |
| 26131-76-01 | 16 | SJT | 7'6" | 5-15P | C13 | 13 A | BUY NOW |
| 26131-910-01 | 16 | SJT | 9'10" | 5-15P | C13 | 13 A | BUY NOW |
| 28131-67-01 | 18 | SJT | 6'7" | 5-15P | C13 | 10 A | BUY NOW |
| 28131-76-01 | 18 | SJT | 7'6" | 5-15P | C13 | 10 A | BUY NOW |
| 28131-910-01 | 18 | SJT | 9'10" | 5-15P | C13 | 10 A | BUY NOW |
| 28231-76-01 | 18 | SVT | 7'6" | 5-15P | C13 | 10 A | BUY NOW |
| 26132-76-01 | 16 | SJT | 7'6" | 5-15P | C13 | 13 A | BUY NOW |
| 28132-76-01 | 18 | SJT | 7'6" | 5-15P | C13 | 10 A | BUY NOW |
| 28132-910-01 | 18 | SJT | 9'10" | 5-15P | C13 | 10 A | BUY NOW |
| 28232-76-01 | 18 | SVT | 7'6" | 5-15P | C13 | 10 A | BUY NOW |

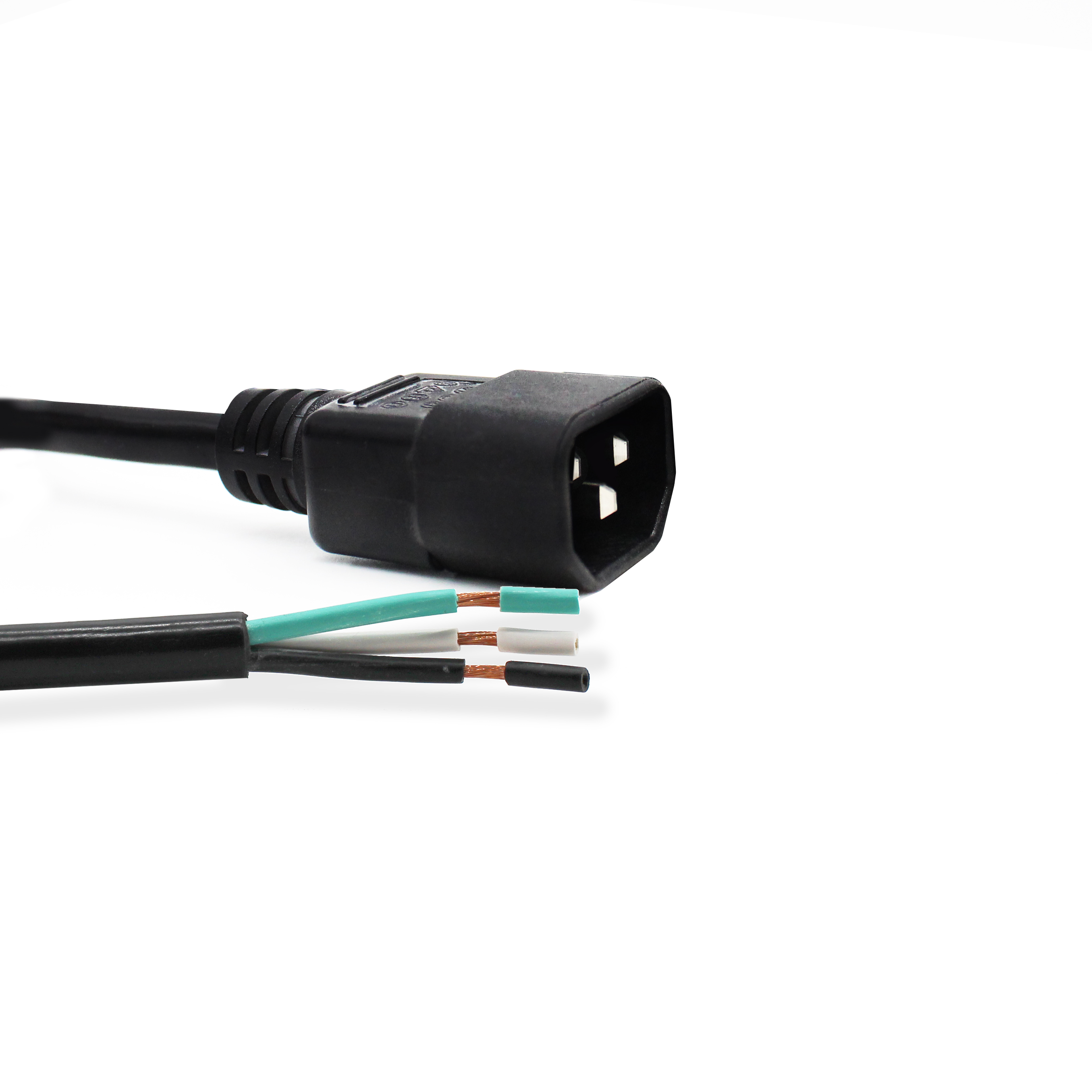

 | 26170-33-01 | 16 | SJT | 3'3" | C14 | Blunt-Cut Wires | 15 A | BUY NOW |

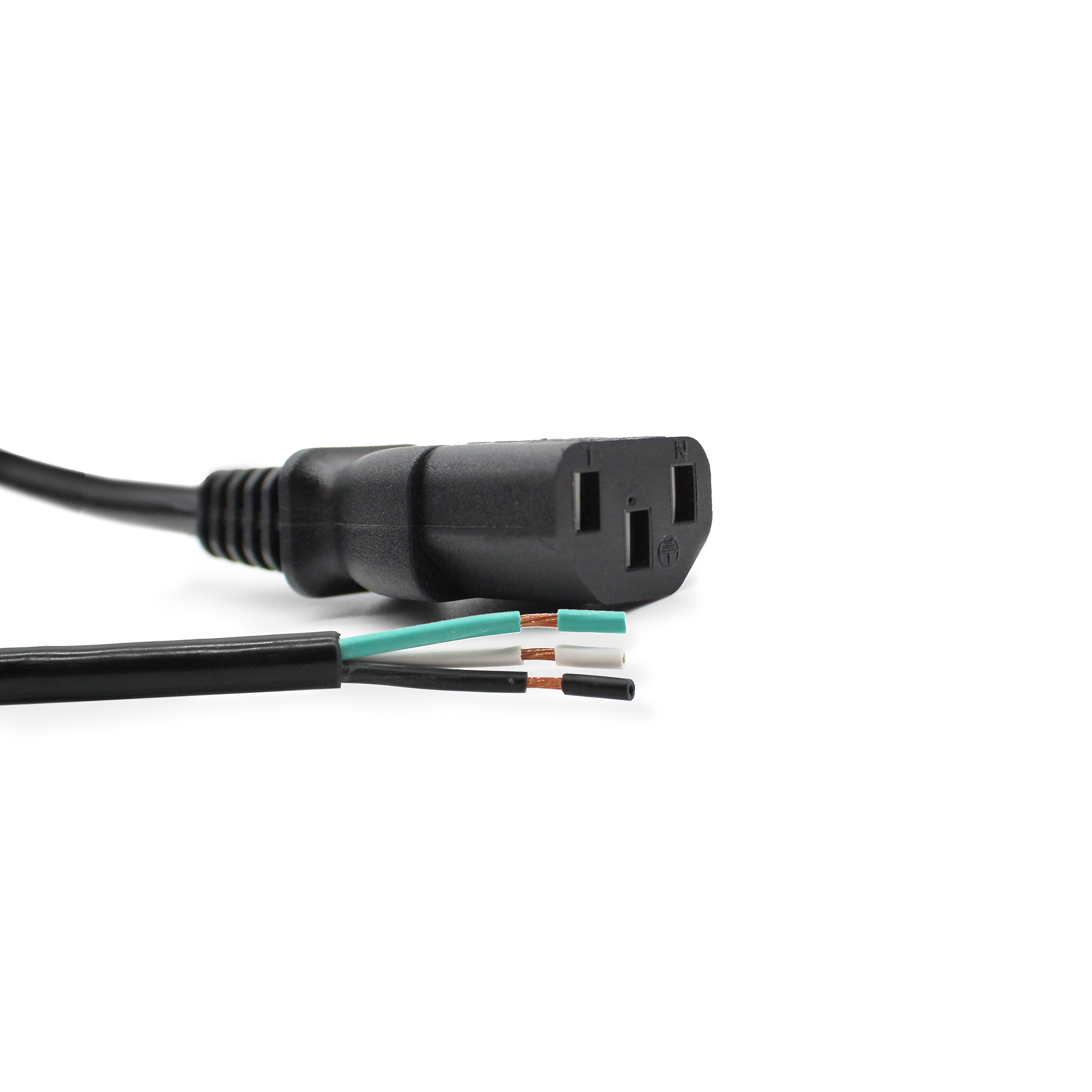

| 26101-33-01 | 16 | SJT | 7'6" | Blunt-Cut Wires | C13 | 15 A | BUY NOW |
 | 26171-33-01 | 16 | SJT | 3'3" | C14 | C13 | 15 A | BUY NOW |
| 26171-67-01 | 16 | SJT | 6'7" | C14 | C13 | 15 A | BUY NOW |
| 26171-910-01 | 16 | SJT | 9'10" | C14 | C13 | 15 A | BUY NOW |
| 28171-33-01 | 18 | SJT | 3'3" | C14 | C13 | 15 A | BUY NOW |
3 Conductor Hospital Grade Power Cords
| PART NUMBER | AWG | CORD TYPE | LENGTH | END 1 | END 2 | CURRENT RATING (125V AC) | DISTRIBUTOR STOCK |
|
|---|---|---|---|---|---|---|---|---|
 | 26151-80-03 | 16 | SJT | 8'0" | 5-15P | C13 | 13 A | BUY NOW |
| 26151-100-03 | 16 | SJT | 10'0" | 5-15P | C13 | 13 A | BUY NOW |
 | 26161-100-03 | 16 | SJT | 10'0" | 5-15P | C13 | 13 A | BUY NOW |
| 26161-140-03 | 16 | SJT | 14'0" | 5-15P | C13 | 13 A | BUY NOW |
| 28151-80-03 | 18 | SJT | 8'0" | 5-15P | C13 | 10 A | BUY NOW |
| 28151-100-03 | 18 | SJT | 10'0" | 5-15P | C13 | 10 A | BUY NOW |
| 28161-80-03 | 18 | SJT | 8'0" | 5-15P | C13 | 10 A | BUY NOW |
3 Conductor United Kingdom Power Cords
| PART NUMBER | mm | CORD TYPE | LENGTH | END 1 | END 2 | CURRENT RATING (250V AC) | DISTRIBUTOR STOCK |
|
|---|---|---|---|---|---|---|---|---|
 | 2B8E825-01 | 3x1.0 | H05VV-F | 2.5m | TYPE G | C13 | 10 A | BUY NOW |
3 Conductor European Power Cords
