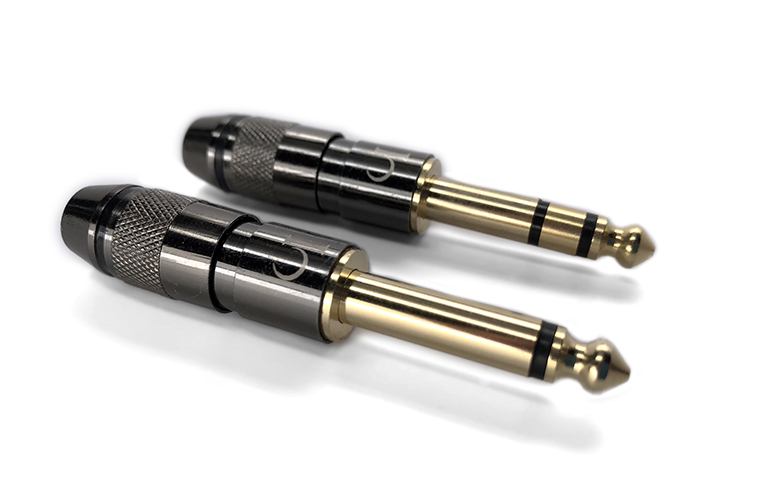

TBK Series 1/4″ Plug

TBK Series 1/4" Plug

Part Number: IO-TXMBK

2 and 3 pole gold-plated phone plugs for audio applications.
Suitable for guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

2 and 3 pole gold-plated phone plugs for audio applications.
Suitable for guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

FEATURES

Gold Plated Plug
Silver Plated Wire Terminals
No Tool Housing Assembly
Metal Pressure Chuck
One Piece Contacts – No Rivets
Solder Termination

AVAILABLE SIZES

OVERVIEW

The TBK Series 1/4 plugs feature a durable nickel tin plated brass shell housing designed to allow for smoother plugging and unplugging. Gold plated plug contacts and silver plated wire terminals are standard, as well as solder termination and a threaded housing assembly. They include both a metal clamp as well as a metal pressure chuck which tightens onto the cable to provide extended strain relief.



These 1/4 plugs also meet the most recent requirements for highest density jackfields (15.88), which means you can not only use them for guitars, basses, keyboards, snakes, speakers, and mixers, but you can also use these connectors in a patch bay for a home studio or professional recording studio.

Technical Specifications

Product

IO-TXMBK

part number

Male

GENDER

2 (IO-T2MBK), 3 (IO-T3MBK)

CONTACTS

MATERIAL

Brass

CONTACTS

SILVER

CONTACT PLATING

Brass

PLUG

Gold

PLUG PLATING

Brass

BUSHING

Brass

Shell

Nickel Tin

SHELL PLATING

PP

INSERT

MECHANICAL

> 1000 Mating Cycles

LIFETIME

4.0 - 6.4mm

Cable O.D.

1.35mm Max (T2MBK),
1.45mm Max (T3MBK)

Wiresize

Solder Contacts

Wiring

ELECTRICAL

< 9 pF

Capacitance Between Contacts

< 7 pF

Capacitance Between Contact and Ground

Depends on Mating Connector

Contact Resistance

500 V

Dielectric Strength

Depends on Mating Connector

Rated Current Per Contact

< 50 V

Rated Voltage

≥ 1GΩ

Insulation Resistance

Environmental

Complies with IEC 60068-2-20

Solderability

IEC 60603-11 / EIA RS-453

Standard Compliance

-40°C ~ +70° C
(-40°F ~ +158°F)

Temperature Range

Technical Specifications

Product

IO-TXMBK

part number

Male

GENDER

2 (IO-T2MBK), 3 (IO-T3MBK)

CONTACTS

MATERIAL

Brass

CONTACTS

SILVER

CONTACT PLATING

Brass

PLUG

Gold

PLUG PLATING

Brass

BUSHING

Brass

Shell

Nickel Tin

SHELL PLATING

MECHANICAL

> 1000 Mating Cycles

LIFETIME

4.0 - 6.4mm

Cable O.D.

1.35mm Max (T2MBK),
1.45mm Max (T3MBK)

Wiresize

Solder Contacts

Wiring

ELECTRICAL

< 9 pF

Capacitance Between Contacts

< 7 pF

Capacitance Between Contact and Ground

Depends on Mating Connector

Contact Resistance

500 V

Dielectric Strength

Depends on Mating Connector

Rated Current Per Contact

< 50 V

Rated Voltage

≥ 1GΩ

Insulation Resistance

Environmental

Complies with IEC 60068-2-20

Solderability

IEC 60603-11 / EIA RS-453

Standard Compliance

-40°C ~ +70° C
(-40°F ~ +158°F)

Temperature Range
