12/2 CL3 PLENUM RATED SPEAKER WIRE

12/2 CL3 PLENUM RATED SPEAKER WIRE

Part Number: IO-S01207-CL3P-500SP

500ft reel of stranded speaker bulk wire engineered for easy installation, durability, and rigorous safety and compliance standards.

FEATURES

UL13 CL3P Flammability Rating

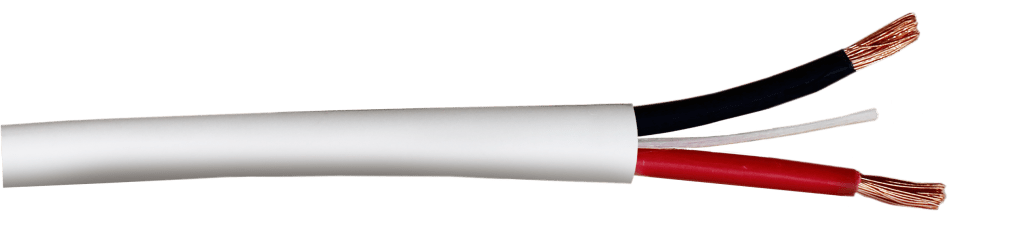

Red & Black Stranded Conductors
Integrated Rip Cord
12 AWG

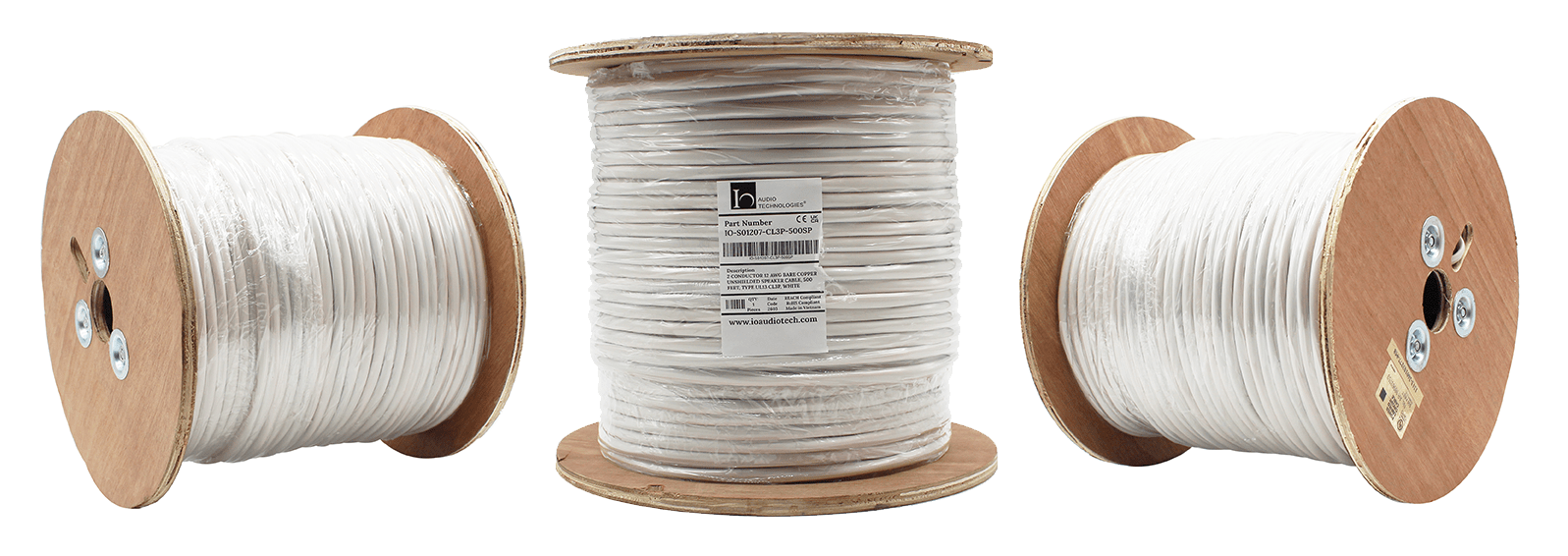

500ft Spool
Low Smoke, Flame Retardant Insulation
PVC Jacket
Footage Markers
Smooth Pull Technology

ORDER NOW

Select an option to view online pricing and stock

OVERVIEW

The Io Audio Technologies 12 AWG 2-Conductor CL3P Speaker Wire is engineered for professional audio installations where performance, reliability, and code compliance are essential. Built with stranded copper conductors, this cable delivers dependable signal transmission for distributed audio, commercial AV, multi-room residential systems, paging, and background music applications. Its plenum-rated UL13 CL3P construction and low-smoke flame-retardant insulation make it suitable for installation in air handling spaces while helping meet stringent building safety requirements.



Designed with installers in mind, the cable is supplied on a 500 ft spool and features a durable white PVC jacket that withstands the demands of installation while remaining flexible for easier routing and termination. Red and black insulated conductors simplify polarity identification, while an integrated rip cord speeds jacket removal for faster termination. Dual-direction footage markings printed every 2 feet provide quick, accurate cable tracking, making it easy to determine both the length of cable used and the amount remaining on the spool.

Technical Specifications

Product

IO-S01207-CL3P-500SP

part number

2 Conductors + Rip Cord

Wire Components

500 Ft Spool

length

FLAMMABILITY GRADE

UL13 CL3P

CONDUCTORS

12 AWG

SIZE

STRANDED ANNEALED COPPER

DETAILS

65/0.251 +/-0.003

STRANDING

INSULATION

LSFRPVC

MATERIAL

3.00 ± 0.2mm

o.d.

red and black

colors

JACKET

6.67 ± 0.2mm

O.D.

0.38 ± 0.08mm

THICKNESS

PVC

MATERIAL

White

COLOR

ELECTRICAL & MECHANICAL CHARACTERISTICS

2.5 KV for 0.15 seconds

SPARK TEST

≤ 10mA (1.5KV AC)

AC LEAKAGE THOUGH OVERALL JACKET

-20±1⁰C x 4 Hrs

CABLE COLD BEND

≥ 100MΩ/Km

INSULATION RESISTANCE

500 V AC For 1 Min

DIELECTRIC STRENGTH

≤ 5.41 Ω/100m

CONDUCTOR DC RESISTANCE

-20°C ~ +75°C (-4°F ~ +167°F)

OPERATING TEMPERATURE
