4 Pin Tiny XLR Cable Connector

4 Pin Tiny XLR Cable Connector

Part Number: IO-TXLR4-X

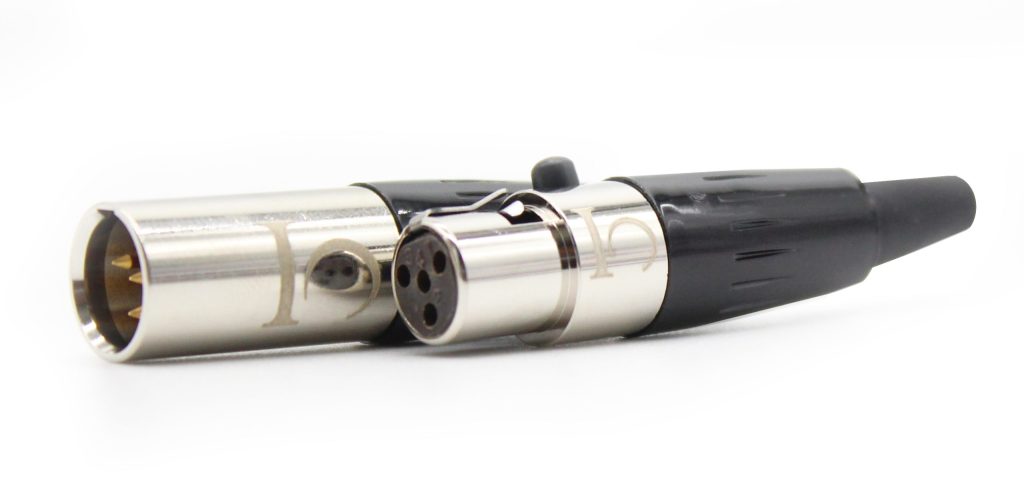

Locking 4 pin cable connector with gold plated pins and solder cups for audio, lighting control, industrial automation, and test equipment.

Locking 4 pin cable connector with gold plated pins and solder cups for audio, lighting control, industrial automation, and test equipment.

FEATURES

Durable Metal Shell
Strain Relief
Gold Plated Contacts
Latch Lock
Solder Termination
Small Footprint

ORDER NOW

Select an option to view online pricing and stock

OVERVIEW

Miniature XLR cable connectors offer the functionality of a standard XLR in a miniaturized footprint. This series is perfect for medical equipment, control systems, sensors, or audio applications such as wireless microphones and portable recorders. They have precision machined, one piece, gold plated contacts and are available in 3, 4, or 5 pin variations. When coupled with quality shielded cables, a robust system for preventing the intrusion of unwanted noises is created.

Technical Specifications

Product

IO-TXLR4-X

part number

Male (IO-TXLR4-M)
Female (IO-TXLR4-F)

GENDER

4

CONTACTS

Brass (Male)
Phosphor bronze (female)

Pins

GOLD

Pin PLATING

ABS

CHUCK

MATERIAL

BRASS

SHELL

NICKEL

SHELL FINISH

BLACK TPV

Boot

ABS

Push Button

BLACK

Push Button Finish

Stainless Steel

Latch

PPS

INSERT

MECHANICAL

> 1000 Mating Cycles

LIFETIME

0.50mm

WIRESIZE (Max O.D.)

2mm - 3.2mm

Cable O.D.

SOLDER CONTACTS​

Wiring

LATCH LOCK

locking device

COMPLIES WITH IEC 60068-2-20​

SOLDERABILITY​

ELECTRICAl

≤ 10 mΩ

CONTACT RESISTANCE​

> 1 GΩ

Insulation Resistance

1000V @ 60s

Dielectric Strength

5A / 50V AC

Current Rating

Environmental

IEC 61076-2-103

Standard Compliance

-40°C ~ +70° C
(-40°F ~ +158°F)

Temperature Range

UL94 V-0

UL Flammability Rating

Technical Specifications

Product

IO-TXLR4-X

part number

Male (IO-TXLR4-M)
Female (IO-TXLR4-F)

GENDER

4

CONTACTS

MATERIAL

Brass (Male)
Phosphor bronze (female)

Pins

GOLD

Pin PLATING

ABS

CHUCK

Brass

SHELL

NICKEL

SHELL FINISH

BLACK TPV

BOOT

ABS

PUSH BUTTON

BLACK

push button finish

stainless steel

Latch

pps

Insert

MECHANICAL

> 1000 Mating Cycles

LIFETIME

0.50mm

WIRESIZE (Max O.D.)

2mm-3.2mm

Cable O.D.

Solder Contacts

WIRING

LATCH LOCK

Locking device

Complies with IEC 60068-2-20

Solderability

ELECTRICAl

≤ 10 mΩ

Contact Resistance

> 1 GΩ

Insulation Resistance

1000V @ 60s

Dielectric Strength

5A / 50V AC

Current Rating

Environmental

IEC 61076-2-103

Standard Compliance

-40°C ~ +70° C
(-40°F ~ +158°F)

Temperature Range

UL94 V-0

UL Flammability Rating
